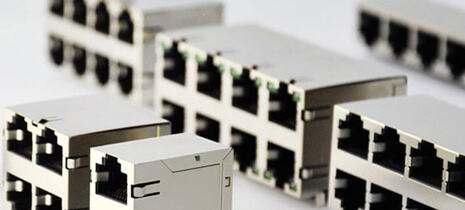

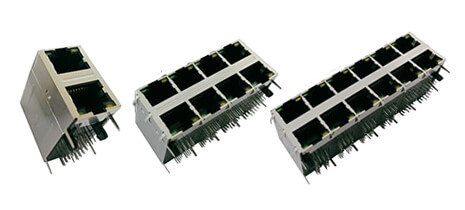

10/100/Gigabit RJ45 2xN Integrated Jack Connector with Magnetics, with or without LEDs, designed to support such applications: Switches, Routers, Servers and Hub. PoE/PoE+ enabled-compatible to IEEE 802.3af/802.3at standard.

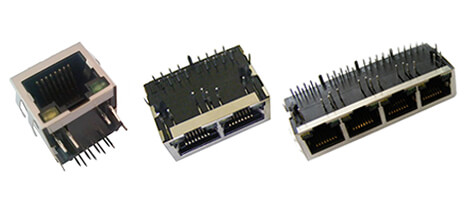

B-TOP RJ45 Modular Jacks with integrated 10/100/Gigabit magnetics in right angle tab down 1xN port configuration meet IEC60603-7 performance requirements. Multiple Ports are available in 1×1, 1×2 and 1×4. Integrated LEDs are available in a variety of colors.

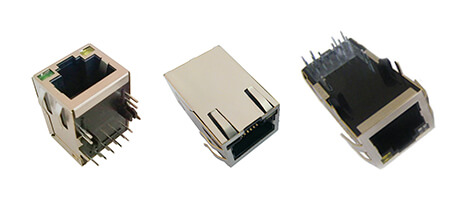

B-TOP RJ45 Modular Jacks with integrated magnetics for 10/100/Gigabit in tab up single port configuration meet IEC60603-7 performance requirements. There are 3 different mechanical parts of tab up: 1.3 inch, 1 inch and 0.85 inch.

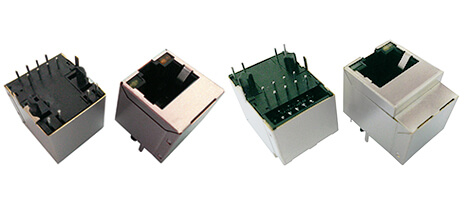

B-TOP RJ45 Modular Jacks with integrated magnetics for 10/100/Gigabit are available in vertical(180 degree) single port top entry configuration. Meet the performance requirements of IEC6063-7. LEDs are available in a variety of colors.

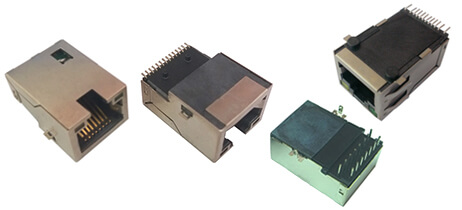

SMT & Low-profile RJ45 Jacks integrated magnetics for 10/100/Gigabit are avaiable in single Tab-UP/DOWN port, has a small size designed to support applications such as: IoT device, Set-Top box and NIC. LEDs are avaialbe in a variety of colors.

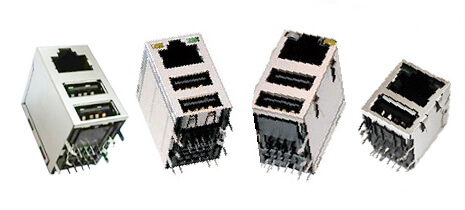

RJ45 USB stacked jack connectors design to save PCB space, optional with one or two Type A USB connectors integrated with a magnetic RJ45, optional USB2.0 or USB3.0 connector. High performance for maximum EMI suppression. LED color options available.

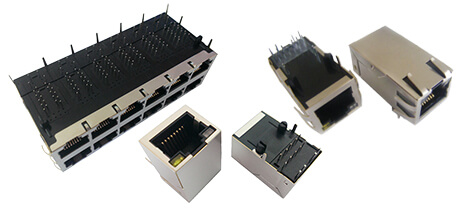

B-TOP Magnetic rj45 jacks are available in Power over Ethernet (PoE) versions that support PoE functionally while allowing customers to manage power. PoE rj45 modular jacks support both 10/100 and Gigabit ethernet applications.
Standard RJ45 Jack without Transformer including: 52, 52, 55, 56, 57, 59 Series with different mechanical and dimension. Allow for global standardization of network connections. Port configurations ranging from 1×1 to 2×8.

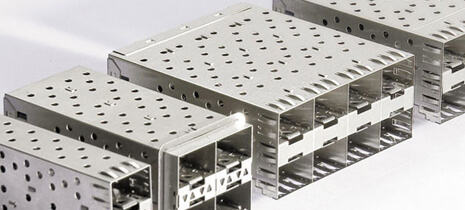

B-TOP offers a complete product line of Integrated SFP/SFP+ cage and connectors, support 2.5 to 10 Gbps data rates for Gigabit Ethernet and Fibre Channel applications. Press-fit/Through-hole available.
