1xN Tab Down RJ45 Modular Jack
B-TOP RJ45 Modular Jack Connectors with integrated 10/100/Gigabit magnetics in right angle tab(latch) down 1xN port configuration meet IEC60603-7 performance requirements. Multiple Ports are available in 1x1, 1x2 and 1x4. RJ45 modular jack with integrated magnetics have shields with EMI fingers on top and on both sides for effective grounding. Integrated LEDs are available in a variety of colors.
1) Tab Down RJ45 Modular Jack with 10/100 Base magnetics are available in three configurations: with resistors on unused pairs but without internal capacitor, with resistors on unused pairs and internal capacitor or with Full Bob Smith termination.
2) Tab down RJ45 Modular Jack with Gigabit magnetics have an integrated full Bob Smith termination and are available in two standard configurations: with the 2KV capacitor terminated on Pin 10, or with the 2KV capacitor terminated to the shield.
Main use: Set-Top Box, DVD player/recorder, Switch, Hub, ADSL modems, Optical modems, Game consoles.

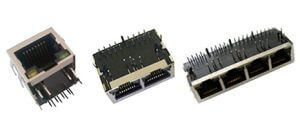

Find more tab down rj45 modular jack pictures in the gallery.
Product List
Click the row to view additional details. If you are viewing this page on mobile device, it is recommended to rotate the screen.
| Part Number | Ports | Size | Speed | Schematic | PoE | LED | EMI Spring | Gold Plating | Temperature | Download | Note | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B50(27)F4-135-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-135 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(27-02)F4-42A-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(27-08)F4-42A-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-09)F4-42A-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-31)F4-136-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-136 | PoE | G/Y | Yes | 6u" | 0 - 70 |
| ||
| B50(27-10)F4-42B-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42B | G/Y | No | 6u" | -40 - 85 | ||||
| B50(27-11)FP4-151-A623-B52 | 1x1 | 21.15*15.9*13.35 | 100M | FP4-151 | PoE | GO/Y | Yes | 6u" | 0 - 70 |
| ||
| B50(27-35)F4-42A-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-39)F4-42A-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(27-42)F4-17-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-17 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(27-46)F4-03A-A123-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-03A | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(27-54)F4-42B-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42B | G/Y | No | 6u" | -40 - 85 |
| |||
| B50(27-74)F4-42B-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42B | G/Y | No | 6u" | -40 - 85 |
| |||
| B50(27-75)F4-24-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-24 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(27-47)F4-42A-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-51)FP4-151-A613-B52 | 1x1 | 21.15*15.9*13.35 | 100M | FP4-151 | PoE | GO/Y | No | 6u" | 0 - 70 |
| ||
| B50(27-52)F4-42-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42 | G/Y | Yes | 6u" | -40 - 85 |
| |||
| B50(27-77)F4-63-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-63 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-83)F4-42A-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-94)F4-42A-A323-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/G | Yes | 6u" | 0 - 70 | ||||
| B50(27-97)PF4-235-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-235 | PoE | G/Y | Yes | 6u" | 0 - 70 |
| ||
| B50(27-98)F4-42A-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(27-99)F4-03B-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-03B | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-100)PF4-244-A115-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-244 | PoE | Y/G | No | 30u" | 0 - 70 | |||
| B50(27-103)F6-111-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F6-111 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(27-112)F4-136-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-136 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(27-115)F4-03A-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-03A | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(27-117)PF6-96-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF6-96 | PoE | G/Y | Yes | 6u" | 0 - 70 | |||
| B50(27-118)PF4-260-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-260 | PoE | G/Y | Yes | 6u" | 0 - 70 | |||
| B50(27-119)F5-209-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F5-209 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-121)FP4-235-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | FP4-235 | PoE | G/Y | Yes | 6u" | 0 - 70 | |||
| B50(27-122)PF4-269-A123-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-269 | PoE | Y/G | Yes | 6u" | 0 - 70 | |||
| B50(27-128)PF4-182-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-182 | PoE | G/Y | No | 6u" | 0 - 70 | |||
| B50(27-130)F4-42A-A113-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | Y/G | No | 6u" | 0 - 70 | ||||
| B50(27-132)F4-60-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-60 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-137)PF4-153-A123-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-153 | PoE | Y/G | Yes | 6u" | 0 - 70 | |||
| B50(27-138)PF4-153-A123-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-153 | PoE | Y/G | Yes | 6u" | 0 - 70 | |||
| B50(27-139)F4-24A-A123-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-24A | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(27-140)F4-17B-A123-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-17B | Y/G | Yes | 6u" | -40 - 85 | ||||
| B50(27-141)F4-42A-A213-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(27-142)PF4-269-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | PF4-269 | PoE | G/Y | Yes | 6u" | 0 - 70 |
| ||
| B50(27-145)F4-03-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-03 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(27-146)F4-003-A113-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-003 | Y/G | No | 6u" | 0 - 70 | ||||
| B50(27-147)F4-010-A223-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-010 | G/Y | Yes | 6u" | 0 - 70 |  | |||
| B50(29)F4-42A-A023-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | None | Yes | 6u" | 0 - 70 |
| |||
| B50(29-21)F4-214-A013-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-214 | None | No | 6u" | 0 - 70 | ||||
| B50(29-26)F5-209-A013-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F5-209 | None | No | 6u" | 0 - 70 | ||||
| B50(29-29)F6-228-A023-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F6-228 | None | Yes | 6u" | 0 - 70 | SUS | |||
| B50(29-30)F4-42A-A013-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | None | No | 6u" | 0 - 70 | ||||
| B50(29-35)F4-03B-A023-B92 | 1x1 | 21.15*15.9*13.35 | 100M | F4-03B | None | Yes | 6u" | -40 - 85 | LCP
| |||
| B50(29-40)F2-282-A023-B52 | 1x1 | 21.15*15.9*13.35 | 100M | F2-282 | None | Yes | 6u" | 0 - 70 | ||||
| B50(29-41)FP4-269-A023-B52 | 1x1 | 21.15*15.9*13.35 | 100M | FP4-269 | PoE | None | Yes | 6u" | 0 - 70 | |||
| B50(30-01)F4-42A-A003-C52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-42A | None | No | 6u" | 0 - 70 |
| |||
| B50(30-07)F4-05-A003-C52 | 1x1 | 21.15*15.9*13.35 | 100M | F4-05 | None | No | 6u" | 0 - 70 |
| |||
| B50(02)G8-14-A612-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-14 | G/GO | No | 6u" | 0 - 70 |
| |||
| B50(02-01)G8-09-A213-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | No | 6u" | 0 - 70 |
| |||
| B50(02-02)G8-09-A123-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(02-03)G8-09-A213-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(02-11)G8-140-A123-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-140 | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(02-13)G8-09D-A123-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09D | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(02-15)G8-09-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-19)G8-113A-A023-B92 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-113A | None | Yes | 6u" | 0 - 70 | LCP | |||
| B50(02-22)G8-09-A213-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(02-31)G8-91-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-91 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-37)G8-09-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-32)G8-09-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-40)G8-81-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-81 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-41)G8-140-A123-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-140 | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(02-46)G8-09-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-45)G12-142-A113-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G12-142 | Y/G | No | 6u" | 0 - 70 | ||||
| B50(02-55)G8-91-A613-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-91 | G/GY | No | 6u" | 0 - 70 | ||||
| B50(02-58)G8-113-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-113 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-59)G8-86A-A623-B92 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-86A | GY/GY | Yes | 6u" | 0 - 70 | LCP | |||
| B50(02-60)G8-113A-A223-B92 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-113A | G/Y | Yes | 6u" | 0 - 70 | LCP | |||
| B50(02-62)G8-40-A123-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-40 | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(02-64)G12-130-A623-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G12-130 | OG/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-66)G8-98-A213-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-98 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(02-67)G8-140-A113-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-140 | Y/G | No | 6u" | 0 - 70 | ||||
| B50(02-71)G8-09-A213-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(02-74)G8-107B-A113-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-107B | Y/G | No | 6u" | -40 - 85 | ||||
| B50(02-79)G8-81-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-81 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-80)G8-204-A113-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-204 | Y/G | No | 6u" | 0 - 70 | ||||
| B50(02-83)G8-206-A225-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-204 | G/Y | Yes | 30u" | 0 - 70 | ||||
| B50(02-85)G8-140-A613-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-140 | GO/O | No | 6u" | 0 - 70 | ||||
| B50(02-86)G8-09-A223-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(02-87)G8-26-A623-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-26 | G/GO | Yes | 6u" | -40 - 85 | cross to HR873338CE | |||
| B50(02-88)G8-26-A625-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-26 | G/GO | Yes | 30u" | -40 - 85 | ||||
| B50(02-89)G8-26-A725-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-26 | G | Yes | 30u" | -40 - 85 | single LED, cross to HR935330CE | |||
| B50(15-02)G8-09-A023-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | None | Yes | 6u" | 0 - 70 |
| |||
| B50(15-10)G8-27-A013-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-27 | None | No | 6u" | 0 - 70 | ||||
| B50(15-11)G8-157-A023-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-157 | None | Yes | 6u" | 0 - 70 |
| |||
| B50(15-12)G8-157-A024-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-157 | None | Yes | 15u" | 0 - 70 |
| |||
| B50(15-13)G8-157-A025-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-157 | None | Yes | 30u" | 0 - 70 |
| |||
| B50(15-16)G8-09-A013-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | None | No | 6u" | 0 - 70 | ||||
| B50(15-22)G8-140-A013-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-140 | None | No | 6u" | 0 - 70 | ||||
| B50(15-23)G8-09-A023-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09 | None | Yes | 6u" | 0 - 70 | ||||
| B50(15-24)G8-140-A023-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-140 | None | Yes | 6u" | 0 - 70 | ||||
| B50(15-26)G8-54A-A023-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-54A | None | Yes | 6u" | 0 - 70 | ||||
| B50(15-27)G8-09C-A013-B52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-09C | None | No | 6u" | 0 - 70 | ||||
| B50(30-10)G8-207-A003-C52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G8-207 | None | No | 6u" | 0 - 70 |
| |||
| B50(30-11)G12-210-A003-C52 | 1x1 | 21.15*15.9*13.35 | Gigabit | G12-210 | None | No | 6u" | 0 - 70 |
| |||
| B50(87-01)F4-42A-B223-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42A | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(87-02)F4-42A-B123-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42A | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(87-05)F4-42A-B223-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42A | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(87-09)F4-03A-B123-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-03A | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(87-12)F4-42A-B223-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42A | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(87-17)F4-42A-B025-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42A | None | Yes | 30u" | 0 - 70 | ||||
| B50(87-21)F4-42A-B213-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42A | G/Y | No | 6u" | 0 - 70 |
| |||
| B50(87-22)F4-280-B123-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-280 | Y/G | Yes | 6u" | 0 - 70 | ||||
| B50(87-01)F4-42A-B223-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42 | None | Yes | 6u" | 0 - 70 | ||||
| B50(88-08)PF4-151-B023-B12 | 1x2 | 21.35*31.24*13.5 | 100M | PF4-151 | PoE | None | Yes | 6u" | 0 - 70 | |||
| B50(88-10)F4-42A-B023-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-42A | None | Yes | 6u" | 0 - 70 | ||||
| B50(88-12)PF4-151B-B223-B12 | 1x2 | 21.35*31.24*13.5 | 100M | PF4-151B | PoE+ | G/Y | Yes | 6u" | 0 - 70 | |||
| B50(88-15)PF4-222-B323-B12 | 1x2 | 21.35*31.24*13.5 | 100M | PF4-222 | PoE | G/G | Yes | 6u" | 0 - 70 | |||
| B50(88-16)PF4-222A-B323-B12 | 1x2 | 21.35*31.24*13.5 | 100M | PF4-222A | PoE | G/G | Yes | 6u" | 0 - 70 | |||
| B50(79-01)G8-09-B123-B52-BT | 1x2 | 21.35*31.24*13.5 | Gigabit | G8-09 | Y/G | Yes | 6u" | 0 - 70 |
| |||
| B50(79-10)G8-09-B113-B52 | 1x2 | 21.35*31.24*13.5 | Gigabit | G8-09 | Y/G | No | 6u" | 0 - 70 | ||||
| B50(79-11)G8-09-B213-B52 | 1x2 | 21.35*31.24*13.5 | Gigabit | G8-09 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(79-15)G8-09-B225-B52 | 1x2 | 21.35*31.24*13.5 | Gigabit | G8-09 | G/Y | Yes | 30u" | 0 - 70 | ||||
| B50(79-16)G8-09-B223-B52 | 1x2 | 21.35*31.24*13.5 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(90-03)G8-09-B025-B52 | 1x2 | 21.35*31.24*13.5 | Gigabit | G8-09 | None | Yes | 30u" | 0 - 70 | ||||
| B50(91-02)F4-136-B213-B52 | 1x2 | 21.35*31.24*13.5 | 100M | F4-136 | G/Y | No | 6u" | 0 - 70 |
| |||
| B50(100-06)F4-03A-Z213-B52 | 1x3 | 21.35*45.08*13.5 | 100M | F4-03A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(108-01)F4-03A-Z013-B92 | 1x3 | 21.35*45.08*13.5 | 100M | F4-03A | None | No | 6u" | 0 - 70 | LCP | |||
| B50(147-19)F4-42A-C223-B52 | 1x4 | 21.35*59.05*13.5 | 100M | F4-42A | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(147-29)F4-42A-C225-B52 | 1x4 | 21.35*59.05*13.5 | 100M | F4-42A | G/Y | Yes | 30u" | 0 - 70 |
| |||
| B50(154-08)F4-03A-C213-B52 | 1x4 | 21.35*59.05*13.5 | 100M | F4-03A | G/Y | No | 6u" | 0 - 70 | ||||
| B50(154-09)F4-42A-C025-F52 | 1x4 | 21.35*59.05*13.5 | 100M | F4-42A | None | Yes | 30u" | 0 - 70 | ||||
| B50(146-09)G8-27-C613-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-27 | A/G | No | 6u" | 0 - 70 | Amber/Green | |||
| B50(154-10)F4-42-C013-B52 | 1x4 | 21.35*59.05*13.5 | 100M | F4-42 | None | No | 6u" | 0 - 70 | ||||
| B50(135-11)G8-140-C023-F52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-140 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(146-11)G8-09-C223-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(146-13)G8-27-C213-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-27 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(146-16)G8-28B-C213-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-28B | G/Y | No | 6u" | -40 - 85 | ||||
| B50(146-17)G8-107A-C223-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-107A | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(146-18)G8-09-C223-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(146-19)G8-110-C223-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-110 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(146-20)G8-09-C613-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-09 | G/O | No | 6u" | 0 - 70 | ||||
| B50(146-22)G8-09-C223-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-09 | G/Y | Yes | 6u" | 0 - 70 |
| |||
| B50(146-23)G8-113-C213-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-113 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(146-24)G8-223-C223-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-223 | G/Y | Yes | 6u" | 0 - 70 | ||||
| B50(146-25)G8-09-C213-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-09 | G/Y | No | 6u" | 0 - 70 | ||||
| B50(146-26)G8-229-C213-B52 | 1x4 | 21.35*59.05*13.5 | Gigabit | G8-229 | G/Y | No | 6u" | 0 - 70 |

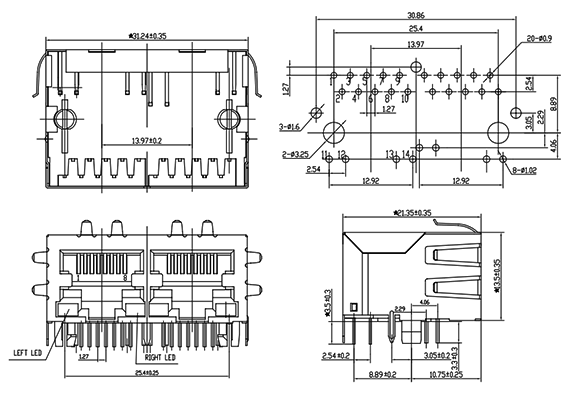

Mechanical
 1x1 Port |  1x2 Port |
 1x4 Port | |
Tab down rj45 modular jack LED Layout
There are oblique and parallel LED layout for single tab down rj45 modular jack.
 LED Pins are oblique |  LED Pins are parallel |
Schematic
Recommended schematics for right angle tab down RJ45 Modular Jack.
 F4-03A |  F4-42A |  F4-135 |
 G8-09 |  G8-113 |  G8-140 |
